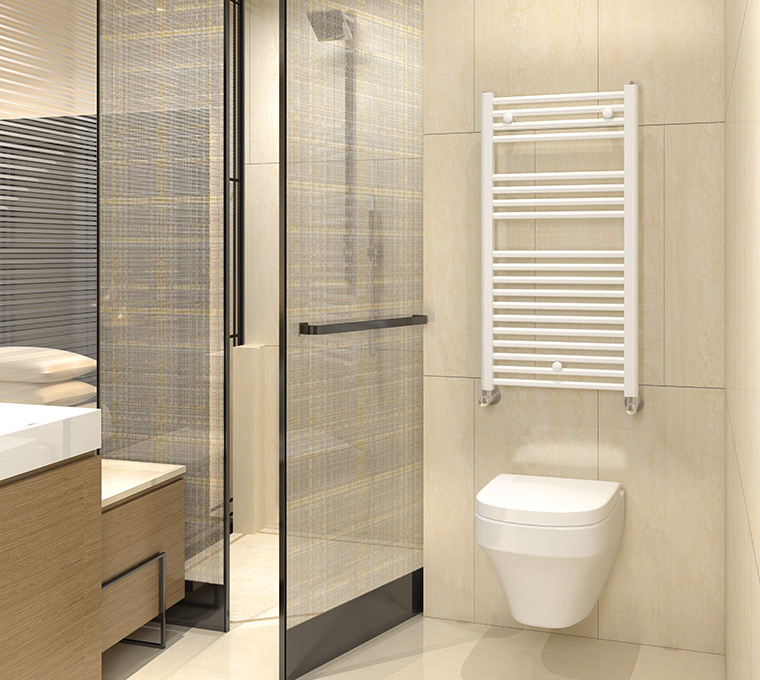

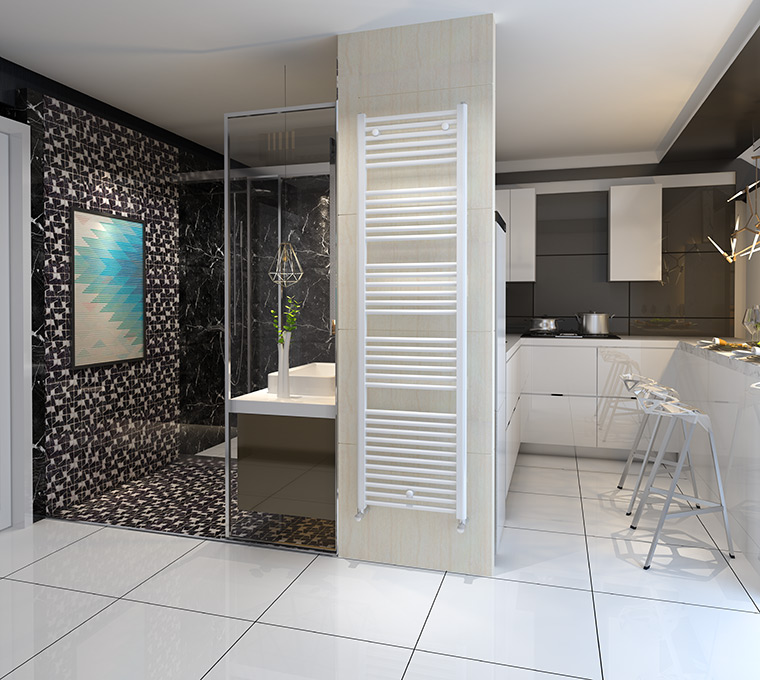

Description
- Circle tube with classic design
- Select best quality SPCC mild steel.
- Fully automatic equment ensure cutting and punching accuracy up to μm.
- Automatic braze welding line provid stability and efficiency.
- Acid pickling and phosphating
- Cathodal electrophoresis primer
- Outdoor grade UV-resistant PE powder coating
- Every radiators pass through 3 Times 100% high pressure test.
Features
- Materials SPCC Mild Steel
- Collectors / Elements 40×30mm / ?22mm circle
- Surface Treatment Cathodal Electrophoresis Primer
- Coating Outdoor grade uv-resistant PE powder Coating
- Connections 4×G1/2”
- Max Temperature 95℃
- Max. Working Pressure 10bar
Technical parameters
| CC1S | Tubes | Width | Pipe center | Depth | Height | Dry Weight | Water Content | Thermal Output ?T50℃(75/65/20℃) |
|
| mm | mm | mm | mm | Kg | L | W | |||
| CC1S-080/050 | 4+4+7 | 15 | 500 | 450 | 30 | 772 | 6.2 | 3.5 | 383 |
| CC1S-100/050 | 4+4+11 | 19 | 932 | 7.8 | 4.4 | 463 | |||
| CC1S-120/050 | 6+6+11 | 23 | 1172 | 9.5 | 5.6 | 588 | |||
| CC1S-150/050 | 6+6+6+11 | 29 | 1412 | 11.7 | 6.8 | 695 | |||
| CC1S-180/050 | 6+6+6+6+11 | 35 | 1732 | 14.2 | 8.4 | 847 | |||
| CC1S-080/060 | 4+4+7 | 15 | 600 | 550 | 30 | 772 | 6.9 | 3.9 | 446 |
| CC1S-100/060 | 4+4+11 | 19 | 932 | 8.8 | 5.1 | 538 | |||
| CC1S-120/060 | 6+6+11 | 23 | 1172 | 10.7 | 6.5 | 682 | |||
Standard thermal output at ， ?T50℃（75 / 65 / 20℃） according to EN442-2 2014
| CC1C | Tubes | Width | Pipe center | Depth | Height | Dry Weight | Water Content | Thermal Output ?T50℃(75/65/20℃) |
|
| mm | mm | mm | mm | Kg | L | W | |||
| CC1C-080/050 | 4+4+7 | 15 | 500 | 450 | 45 | 772 | 6.4 | 3.6 | 391 |
| CC1C-100/050 | 4+4+11 | 19 | 932 | 7.9 | 4.5 | 472 | |||
| CC1C-120/050 | 6+6+11 | 23 | 1172 | 9.7 | 5.7 | 598 | |||
| CC1C-150/050 | 6+6+6+11 | 29 | 1412 | 11.9 | 6.9 | 709 | |||
| CC1C-180/050 | 6+6+6+6+11 | 35 | 1732 | 14.4 | 8.5 | 863 | |||
| CC1C-080/060 | 4+4+7 | 15 | 600 | 550 | 45 | 772 | 7.1 | 4.1 | 451 |
| CC1C-100/060 | 4+4+11 | 19 | 932 | 9.1 | 5.1 | 546 | |||
| CC1C-120/060 | 6+6+11 | 23 | 1172 | 10.8 | 6.5 | 693 | |||
Standard thermal output at ， ?T50℃（75 / 65 / 20℃） according to EN442-2 2014

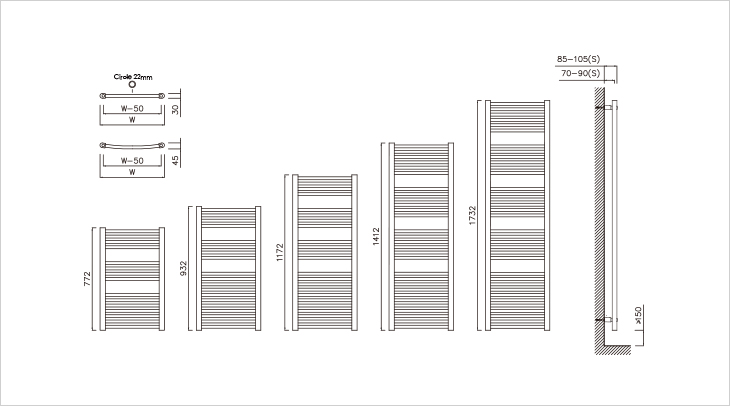

Size
